Offcarr

Thanks for choosing an OFFCARR product.

OFFCARR listens and responds to the customers' needs by engineering highly technical, innovative solutions aimed at reducing daily mobility problems, with special attention to product style and to improving quality of life.

OFFCARR has a certified system for quality management following UNI EN ISO 9001 regulations and a Medical Device - Quality management system following UNI EN ISO 13485 regulations.

OFFCARR products comply with the european medical device regulation UE MDR 2017/745.

Important

Before using or making adjustments on this device, read this instruction manual carefully.
Important Different versions of this manual, accessible for various types of visual disabilities are available on www.offcarr.com

Contact an authorized dealer or the manufacturer at the following address if clarification regarding the safety measures is required.

Manufacturer symbol

OFFCARR srl
Via dell’Artigianato II, 29
35010 Villa del Conte (Padova) Italy
Tel. +39 049 9325733 Fax +39 049 9325734
Email: offcarr@offcarr.com
www.offcarr.com

Origin country symbol

MADE IN ITALY

Distributor symbol

Distributor:

Space for distributor info

1. Labelling

Each OFFCARR product is identified by a unique serial number. The serial number, along with other information is visible on the product stickers applied to the frame.

Sticker position on the product frame

Stickers position on the product frame

Identification sticker

Product sticker (applied on the frame)

UDI sticker

UDI sticker (applied on the frame and on the instructions for use)

Information available on the product sticker:

  1. Manufacturer

  2. Read the instructions

  3. Maximum load

  4. CE symbol

  5. Serial number

  1. Manufacturing date

  2. Medical device

  3. UDI number

  4. Model

1.1. Symbols description

Read the manual symbol

Please read all instructions before using the device. Read all Cautions and Warnings carefully.

CE symbol

European Conformity - The symbol denotes conformity to European standards.

WARNING symbol

WARNING: Read carefully and follow the indications.

NOTE symbol

NOTE: Auxiliary information.

Medical device symbol

Medical Device

UDI symbol

UDI: Unique Device Identifier

Serial number symbol

Serial Number

Order number symbol

Reference - The symbol indicates the model of the product.

Origin country symbol

The symbol indicates the country of origin.

Distributor symbol

The symbol indicates the distributor of the product.

Manufacturer symbol

The symbol indicates the manufacturer of the product.

User Weight symbol

The symbol indicates the maximum load permissible for the product.

Weather symbol

The symbol denotes the importance of protecting the packaging and the product from harsh weather.

Tall and Fragile symbol

The symbol denotes that shipment must be performed with care and the package must always be kept and stored with the arrows pointing upwards.

2. Using the device

Important In order to move safely and properly use the device, it is always recommended to consult qualified personnel.

Hereafter are some suggestions for a correct use of the device, also aimed to maintain the characteristics of safety and durability over time:

  • The brakes only have a parking purpose and should never be used as service brakes to slow down the device in motion.

  • Do not lean too far forward, because by moving the centre of gravity, the device could tip-over.

  • The device should be used only in accordance with what is proposed in this manual and not of objects in general.

  • Always deal with slopes above 6° with assistance from an attendant. This limit is only approximate and it depends on the specific configuration of the device, especially on the position of the centre of gravity of the user-wheelchair combination.

  • To ensure the efficiency of the brakes, maintain the tyres properly inflated and quarterly check the knurled locking pin wear.

  • Never use the anti-tip devices, if available, as transit wheels.

  • The armrests, if available, are not designed to lift the device.

  • Avoid wheeling the device without the supervision of an attendant.

  • Perform a general check of the device at least every three months, by checking tyre inflation, efficiency of the quick-release axles and brakes; lubricate the moving parts whenever necessary.

  • If necessary, the upholstery can be washed with water at low temperature. Avoid wetting or submerging other parts of the device.

  • Prolonged contact of the device with water or prolonged exposure to high humidity levels can cause unwanted oxidation of some metal parts and decay of the security features of the materials involved.

  • Avoid contact with seawater and sand. In case of contact proceed to an immediate and accurate cleaning.

  • Clean periodically the device using a damp cloth and avoid even partial immersion of the frame. Keeping the device clean enhances its efficiency.

Important Suspend the use of the product and notify OFFCARR in case of allergic reactions or if other similar problems are developed after contact with the device materials.
Important There is no apparent danger of causing injury to people during the operations of preparation and setup of the device if carried out according to the instructions provided in this manual.
Important Make sure the tyres are correctly inflated. Since the correct pressure differs between models, read the required pressure on the side of the tyre itself.
Important

Keep the device away from heat sources, as not all the components are fireproof.
Note

Upholstery materials comply with the EN 1021-2:2014 regulation.
Important The approximate lifespan of the device is 7 years, considering correct, normal daily use by a single user and regular maintenance.

3. Warnings to reduce any risks associated with misuse of the device

Important It is forbidden to use the device or its parts in different ways from those described on this manual.
Important Do not use the brakes, if available, to slow down the device at any speed. They are only designed as parking devices.
Important

Do not use the armrests, if available, to pick the device up or as clamping spots.
Important

Never use the anti-tip devices, if available, as transit wheels. It is not their intended purpose.
Important It is suggested to frequently check the working order of the quick-release wheel devices, especially after each insertion.
Important The gap between wheels and side-guards or brakes could be lower than 25 mm. Be careful not to put your fingers between the wheels and side-guards or brakes to avoid injury.
Important

With pneumatic tyres, it is recommended to reduce their pressure in the case of air transport, to avoid collateral effects of pressure variations due to altitude.
Important To maintain the device efficient and maintain its safety requirements it is recommended to uphold a regular upkeep schedule, as described by this manual.
Important Poor maintenance and improper use of the device can cause damage or injury to the user or assistant.
Important Any tampering with the components of the device, as well as voiding the warranty, could compromise its structural integrity and safety standards.
Important Contact OFFCARR in case the maximum user weight is exceeded at any point during the device’s lifespan.
Important Contact OFFCARR or your reseller to check for compatibility with accessories produced by a manufacturer different from OFFCARR.
Important Do not install on the device mechanical or electronic devices that are not approved by OFFCARR and do not modify its structure in any way. Any combination with other medical devices must be authorized by OFFCARR. In case the combination has been approved, always refer to the respective manuals.
Important The device and its accessories are not suitable for use in hyperbaric chambers under any circumstances.
Important In case of prolonged exposure to the sun, the surface of the device can reach high temperatures.
Important

The device is not designed and certified for use as forward-facing seat on a motor vehicle.
Important Before transferring to or from the device, activate the parking brakes. Always perform transfers with caution.
Important Some openings in the device may have angles lower than 75° (e.g. space between wheel spokes) or gaps smaller than 25 mm (e.g. gaps between spokes).
Important For technical and aesthetic reasons the pushing handles may be placed at a height lower than 900 mm from the ground.
Important

Headrests (optional) are not approved for use as headrests on moving vehicles.
Important The tip assist pedal and anti-tip devices are optional accessories that must be requested when ordering the device.
Important Do not exceed the weight limit of the devices even temporarily. For example, do not perform activities such as weightlifting on the devices.

4. Product presentation

4.1. ACE

ACE are non-invasive medical devices specifically designed to reduce and counterbalance motor impairments in the medium and long-term.

This wheelchair is manually propelled on the back wheels, it allows for many configurations and a wide range of accessories to meet the needs of users.

Only qualified operators must setup the device.

Important It is forbidden to use the device or its parts in different ways from those described in this manual.

4.1.1. Description

  1. Axle

  2. Frame

  3. Seat

  4. Backrest

  5. Side-guards

  6. Footrest

  7. Parking brakes

  8. Front forks

  9. Castor wheels

  10. Rear wheels

  11. Tyres

  12. Pushrim

  13. Quick-release button

Schema delle parti di ace

4.1.2. Features

  • Ultralight wheelchair

  • Rigid aluminium frame

  • Height/tilt/depth-adjustable footrest

  • Quick-release rear wheels

4.1.3. Measurements table

All measurements are in degrees (°) and millimetres (mm), the weight is expressed in kilograms (kg).

WIND

Reference values
UNI EN 121831

Seat angle
(from horizontal)

CUSTOM

Backrest angle
(from horizontal)

CUSTOM

Leg angle
(from seat)

CUSTOM

Total width

CUSTOM

7001

Total length

CUSTOM

12001

Total height

CUSTOM

12001

Pivot turn width

-

13001

Turn width

-

10001

Weight 2

-


All measurements refer to wheelchairs in standard configuration
The addition of accessories may modify the indicated measurements and weight
1 Some measurements may exceed the reference values according to UNI EN 12183. In some circumstances and with certain configurations, the use of safety exits may be complicated or impossible
2 The weight depends on the selected configuration and may vary based on accessories.

4.1.4. Rear wheel and pushrim diameter

The table indicates diameter of rear wheels and relative pushrims.

Rear wheel diameter Pushrim outer diameter (average)

24"

- mm

25"

- mm

26"

- mm

28"

- mm

4.1.5. Front wheel diameter

Front wheel options

72 mm

solid

4.2. ALLEY HOOP

ALLEY HOOP are non-invasive medical devices specifically designed to reduce and counterbalance motor impairments in the medium and long-term.

This wheelchair is manually propelled on the back wheels, it allows for many configurations and a wide range of accessories to meet the needs of users.

Only qualified operators must setup the device.

Important It is forbidden to use the device or its parts in different ways from those described in this manual.

4.2.1. Description

  1. Axle

  2. Frame

  3. Seat

  4. Backrest

  5. Side-guard

  6. Footrest

  7. Rear fork

  8. Front fork

  9. Castor wheels

  10. Rear wheel

  11. Tyre

  12. Pushrim

  13. Quick-release button

Wind’s parts scheme

4.2.2. Features

  • Ultralight wheelchair

  • Adjustable center of gravity

  • Rigid aluminum frame

  • Height-adjustable back-rest

  • Height-adjustable seat height

  • Height/tilt/depth-adjustable footrest

  • Quick-release rear wheels

  • Maximum load: xxx kg

4.2.3. Measurements table

All measurements are in degrees (°) and millimetres (mm), the weight is expressed in kilograms (kg).

WIND

Reference values
UNI EN 121831

Seat angle
(from horizontal)

CUSTOM

Backrest angle
(from horizontal)

CUSTOM

Leg angle
(from seat)

CUSTOM

Total width

min 790 mm, max 940 mm (24”)
min 870 mm, max 955 mm (26-28”)

7001

Total length

min 840 mm, max 850 mm (24”)
min 840 mm max 890 mm (26-28”)

12001

Total height

min 570 mm, max 960 mm (24”)
min 570 mm, max 970 mm (26-28”)

12001

Pivot turn width

min 1580 mm, max 1680 mm (24”)
min 1730 mm, max 1920 mm (26-28”)

13001

Turn width

min 790 mm, max 840 mm (24”)
min 870 mm, max 955 mm (26-28”)

10001

Weight 2

X


All measurements refer to wheelchairs in standard configuration
The addition of accessories may modify the indicated measurements and weight
1 Some measurements may exceed the reference values according to UNI EN 12183. In some circumstances and with certain configurations, the use of safety exits may be complicated or impossible
2 The weight depends on the selected configuration and may vary based on accessories.

4.2.4. Rear wheel and pushrim diameter

The table indicates diameter of rear wheels and relative pushrims.

Rear wheel diameter Pushrim outer diameter (average)

22"

480 mm

24"

535 mm

25"

550 mm

26"

590 mm

28"

620 mm

4.2.5. Front wheel diameter

Front wheel options

72 mm

solid

4.3. ASSIST

ASSIST are non-invasive medical devices specifically designed to reduce and counterbalance motor impairments in the medium and long-term.

This wheelchair is manually propelled on the back wheels, it allows for many configurations and a wide range of accessories to meet the needs of users.

Only qualified operators must setup the device.

Important It is forbidden to use the device or its parts in different ways from those described in this manual.

4.3.1. Description

  1. Axle

  2. Frame

  3. Seat

  4. Backrest

  5. Side-guard

  6. Footrest

  7. Rear fork

  8. Front fork

  9. Castor wheels

  10. Rear wheel

  11. Tyre

  12. Pushrim

  13. Quick-release button

Wind’s parts scheme

4.3.2. Features

  • Ultralight wheelchair

  • Rigid aluminium frame

  • Height/tilt/depth-adjustable footrest

  • Quick-release rear wheels

4.3.3. Measurements table

All measurements are in degrees (°) and millimetres (mm), the weight is expressed in kilograms (kg).

WIND

Reference values
UNI EN 121831

Seat angle
(from horizontal)

CUSTOM

Backrest angle
(from horizontal)

CUSTOM

Leg angle
(from seat)

CUSTOM

Total width

min 790 mm, max 940 mm (24”)
min 870 mm, max 955 mm (26-28”)

7001

Total length

min 840 mm, max 850 mm (24”)
min 840 mm max 890 mm (26-28”)

12001

Total height

min 570 mm, max 960 mm (24”)
min 570 mm, max 970 mm (26-28”)

12001

Pivot turn width

min 1580 mm, max 1680 mm (24”)
min 1730 mm, max 1920 mm (26-28”)

13001

Turn width

min 790 mm, max 840 mm (24”)
min 870 mm, max 955 mm (26-28”)

10001

Weight 2

X


All measurements refer to wheelchairs in standard configuration
The addition of accessories may modify the indicated measurements and weight
1 Some measurements may exceed the reference values according to UNI EN 12183. In some circumstances and with certain configurations, the use of safety exits may be complicated or impossible
2 The weight depends on the selected configuration and may vary based on accessories.

4.3.4. Rear wheel and pushrim diameter

The table indicates diameter of rear wheels and relative pushrims.

Rear wheel diameter Pushrim outer diameter (average)

24"

535 mm

26"

590 mm

28"

620 mm

4.3.5. Front wheel diameter

Front wheel options

72 mm

solid

4.4. GO TRY

GOTRY are non-invasive medical devices specifically designed to reduce and counterbalance motor impairments in the medium and long-term.

This wheelchair is manually propelled on the back wheels, it allows for many configurations and a wide range of accessories to meet the needs of users.

Only qualified operators must setup the device.

Important It is forbidden to use the device or its parts in different ways from those described in this manual.

4.4.1. Description

  1. Axle

  2. Frame

  3. Seat

  4. Backrest

  5. Side-guard

  6. Footrest

  7. Rear fork

  8. Front fork

  9. Castor wheels

  10. Rear wheel

  11. Tyre

  12. Pushrim

  13. Quick-release button

GO TRY’s parts scheme

4.4.2. Features

  • Ultralight wheelchair

  • Rigid aluminium frame

  • Height/tilt/depth-adjustable footrest

  • Quick-release rear wheels

4.4.3. Measurements table

All measurements are in degrees (°) and millimetres (mm), the weight is expressed in kilograms (kg).

WIND

Reference values
UNI EN 121831

Seat angle
(from horizontal)

CUSTOM

Backrest angle
(from horizontal)

CUSTOM

Leg angle
(from seat)

CUSTOM

Total width

min 790 mm, max 940 mm (24”)
min 870 mm, max 955 mm (26-28”)

7001

Total length

min 840 mm, max 850 mm (24”)
min 840 mm max 890 mm (26-28”)

12001

Total height

min 570 mm, max 960 mm (24”)
min 570 mm, max 970 mm (26-28”)

12001

Pivot turn width

min 1580 mm, max 1680 mm (24”)
min 1730 mm, max 1920 mm (26-28”)

13001

Turn width

min 790 mm, max 840 mm (24”)
min 870 mm, max 955 mm (26-28”)

10001

Weight 2

X


All measurements refer to wheelchairs in standard configuration
The addition of accessories may modify the indicated measurements and weight
1 Some measurements may exceed the reference values according to UNI EN 12183. In some circumstances and with certain configurations, the use of safety exits may be complicated or impossible
2 The weight depends on the selected configuration and may vary based on accessories.

4.4.4. Rear wheel and pushrim diameter

The table indicates diameter of rear wheels and relative pushrims.

Rear wheel diameter Pushrim outer diameter (average)

24"

535 mm

26"

590 mm

28"

620 mm

4.4.5. Front wheel diameter

Front wheel options

72 mm

solid

4.5. TOP SPIN 3

TOP SPIN 3 è una carrozzina progettata per soddisfare le esigenze di adulti e ragazzi che si avvicinano al gioco del Tennis, praticato su campi da gioco sia indoor che outdoor. Realizzata in lega leggera di alluminio, propone un’ampia gamma di regolazioni per essere configurata secondo le esigenze di atleti con diverse patologie, ed accompagnarli nello sviluppo e nella loro crescita sportiva, ricreativa ed agonistica. Il dispositivo è conforme ai seguenti standard:

  • ISO 7176-8 (con manichino da 120 kg)

  • ISO 7176-16

La configurazione dev’essere eseguita esclusivamente da personale qualificato.

Important È vietato l’utilizzo della carrozzina e di sue parti per un uso improprio o diverso da quanto previsto su questo manuale.

4.5.1. Descrizione

La carrozzina TOP SPIN 3 per il gioco del tennis è caratterizzata da un telaio diviso in due sezioni: un telaio inferiore o base ed un telaio superiore o seduta. La base determina la geometria dell’impronta a terra della carrozzina, l’assetto ed il fissaggio delle ruote grandi di spinta, delle ruotine direzionali anteriori e di quelle antiribaltamento posteriori ed include la pedana e le sue regolazioni.

  1. Schienale

  2. Sedile

  3. Salvaabiti

  4. Corrimano

  5. Pedana

  6. Ruotina antiribaltamento

  7. Bussole ruote posteriori

  8. Ruota di spinta posteriore

  9. Ruotina anteriore

Schema delle parti di TOP SPIN 3

4.5.2. Caratteristiche TOP SPIN 3

  • Telaio in lega di alluminio

  • Ruotina centrale antiribaltamento Ø 72 mm regolabile in altezza e profondità

  • Campanatura prestabilita: 18° - 20° - 22°

  • Diametro ruote di trazione: 24" - 25" - 26" - 28”

  • Corrimano in alluminio

  • Ruotine anteriori: piroettanti Ø 72 mm larghezza 23.5 mm

  • Larghezza seduta a scelta: 360, 380, 400, 420 mm

  • Profondità seduta: 380, 400, 420 mm

  • Distanza asse / schienale: da 80 a 210 mm regolabile a step di 10 mm

  • Altezza schienale: 250, 270, 290, 310, 330, 350, 370, 390 mm regolabile

  • Altezza sedile anteriore da terra: da 340 a 540 mm regolabile

  • Altezza sedile post. da terra: da 300 a 540 mm regolabile a step di 10 mm

  • Distanza dall’asse, altezza e inclinazione della pedana: regolabili

  • Cinturino fermapiedi: di serie

  • Portata massima: 120 kg

4.5.3. Tabella delle misure TOP SPIN 3

Le misure sono in gradi (°) e millimetri (mm), il peso è espresso in chilogrammi (kg).

TOP SPIN 3

Valori di riferimento
UNI EN 121831

Angolo seduta
(dal pavimento)

0° ÷ 34°

Angolo schienale
(dal pavimento)

89° ÷ 92°

Angolo gambe
(dal sedile)

130° ÷ 50°

Larghezza totale

min 790 mm, max 930 mm

700

Lunghezza totale

min 840 mm, max 890 mm

1200

Altezza totale

min 570 mm, max 960 mm

1200

Diametro pivot

min 1580 mm, max 1860 mm

1300

Diametro di sterzata

min 790 mm, max 930 mm

1000

Peso

da 11 a 16 kg2


Tutte le misure fanno riferimento a carrozzine in assetto standard
L’aggiunta di accessori può modificare le misure indicate
1 Alcune misure possono eccedere i valori di riferimento secondo UNI EN 12183. In alcune circostanze e con determinati assetti l’uso delle uscite di sicurezza potrebbe essere complicato o impossibile
2 Il peso è legato all’assetto selezionato, e può variare in base agli accessori

4.6. WIND

WIND are non-invasive medical devices specifically designed to reduce and counterbalance motor impairments in the medium and long-term.

This wheelchair is manually propelled on the back wheels, it allows for many configurations and a wide range of accessories to meet the needs of users.

Only qualified operators must setup the device.

Important It is forbidden to use the device or its parts in different ways from those described in this manual.

4.6.1. Description

  1. Axle

  2. Frame

  3. Seat

  4. Backrest

  5. Side-guard

  6. Footrest

  7. Rear fork

  8. Front fork

  9. Castor wheels

  10. Rear wheel

  11. Tyre

  12. Pushrim

  13. Quick-release button

Wind’s parts scheme

4.6.2. Features ALUMINIUM

  • Ultralight wheelchair

  • Rigid aluminium frame

  • Height/tilt/depth-adjustable footrest

  • Quick-release rear wheels

4.6.3. Features TITANIUM

  • Ultralight wheelchair

  • Rigid titanium frame

  • Height/tilt/depth-adjustable footrest

  • Quick-release rear wheels

  • Maximum load: 120 kg

4.6.4. Measurements table

All measurements are in degrees (°) and millimetres (mm), the weight is expressed in kilograms (kg).

WIND

Reference values
UNI EN 121831

Seat angle
(from horizontal)

CUSTOM

Backrest angle
(from horizontal)

CUSTOM

Leg angle
(from seat)

CUSTOM

Total width

min 790 mm, max 940 mm (24”)
min 870 mm, max 955 mm (26-28”)

7001

Total length

min 840 mm, max 850 mm (24”)
min 840 mm max 890 mm (26-28”)

12001

Total height

min 570 mm, max 960 mm (24”)
min 570 mm, max 970 mm (26-28”)

12001

Pivot turn width

min 1580 mm, max 1680 mm (24”)
min 1730 mm, max 1920 mm (26-28”)

13001

Turn width

min 790 mm, max 840 mm (24”)
min 870 mm, max 955 mm (26-28”)

10001

Weight 2

X


All measurements refer to wheelchairs in standard configuration
The addition of accessories may modify the indicated measurements and weight
1 Some measurements may exceed the reference values according to UNI EN 12183. In some circumstances and with certain configurations, the use of safety exits may be complicated or impossible
2 The weight depends on the selected configuration and may vary based on accessories.

4.6.5. Rear wheel and pushrim diameter

The table indicates diameter of rear wheels and relative pushrims.

Rear wheel diameter Pushrim outer diameter (average)

22"

480 mm

24"

535 mm

25"

550 mm

26"

590 mm

28"

620 mm

4.6.6. Front wheel diameter

Front wheel options

72 mm

solid

4.7. ZODIAC FENCING

ZODIAC SCHERMA are non-invasive medical devices specifically designed to reduce and counterbalance motor impairments in the medium and long-term.

This wheelchair is manually propelled on the back wheels, it allows for many configurations and a wide range of accessories to meet the needs of users.

Only qualified operators must setup the device.

Important It is forbidden to use the device or its parts in different ways from those described in this manual.

4.7.1. Description

  1. Axle

  2. Frame

  3. Seat

  4. Backrest

  5. Side-guards

  6. Footrest

  7. Parking brakes

  8. Front forks

  9. Castor wheels

  10. Rear wheels

  11. Tyres

  12. Pushrim

  13. Quick-release button

Schema delle parti di zodiac_scherma

4.7.2. Features

  • Ultralight aluminium rigid frame

  • V shaped front frame

  • Collapsible backrest

  • Single aluminium tubular footrest (open or closed)

  • Carbon fibre side-guards

  • Quick extraction rear wheels

  • Maximum load: 120 kg

4.7.3. Measurements table

All measurements are in degrees (°) and millimetres (mm), the weight is expressed in kilograms (kg).

ZODIAC

Reference values
UNI EN 121831

Seat angle
(from horizontal)

0° ÷ 16°

Backrest angle
(from horizontal)

89° ÷ 93°

Leg angle
(from seat)

custom

Total width

max. 740
(L46)

7001

Total length

max. 900
(P46 - 75° frame)

12001

Total height

max. 950
(HP 48, HS 41)

12001

Pivot turn width

max. 1600

13001

Turn width

max. 1300

10001

Weight2

9,8


All measurements refer to wheelchairs in standard configuration
The addition of accessories may modify the indicated measurements and weight

1 Some measurements may exceed the reference values according to UNI EN 12183. In some circumstances and with certain configurations, the use of safety exits may be complicated or impossible
2 Seat 38x38. The weight depends on the selected configuration and may vary based on accessories.

4.7.4. Rear wheel and pushrim diameter

The table indicates diameter of rear wheels and relative pushrims.

Rear wheel diameter Pushrim outer diameter (average)

4.7.5. Front wheel diameter

Front wheel options

5. Preparation for use

Important The preparation for use of these devices must be performed by qualified personnel to ensure the specific suitability of the product for the user and the correct working order of all parts and accessories, as well as to provide clear instructions to the user.

5.1. Rear wheels release and re-engagement check

Important

Verify proper operation of the quick-release axle devices before using the wheelchair.

The wheelchair is usually shipped with the rear wheels disassembled.

  • Make sure the brakes are released

  • Holding down the quick-release button (in the centre of the hub), slide the wheel out of the bush

  • Still holding down the button, reinsert the wheel into its seat and release the button, making sure it has returned to its home position. It should click audibly when in seat

  • Check the working order of the engagement by trying to pull the wheel outward without pressing the button, making sure the wheel is correctly locked

Wheel removal check
Important For safety reasons it is important to repeat this test every time that for transport or maintenance reasons, the rear wheels are removed and reassembled to the frame.

5.2. Tyre pressure check

A periodical check of the tyre pressure helps to keep the device efficient and more comfortable

Verify the tyre pressure value according to the value marked on the tyre. Indicatively the maximum pressure for the most common wheels is:

  • 7.5 bar (750 kPa - 110 psi) for high pressure wheels

  • 4.5 bar (450 kPa - 65 psi) for 20", 22", 24" x 1.3/8" wheels

  • 2.5 bar (250 kPa - 30 psi) for pneumatic castor wheels

Important With pneumatic tyres, it is recommended to reduce their pressure in the case of air transport, to avoid collateral effects of pressure variations due to altitude.

5.3. Brakes check

To check the correct functioning and the efficiency of the parking brakes:

  • activate the brakes (ON position)

  • check if the wheels are locked in place

Pushing brake ON position

Pushing brake OFF position

Pushing brake ON position

Pushing brake OFF position
Note

Brake type availability is limited depending on the chosen configuration. Not all brake types are available for every setup.
Important The included brakes, except for the assistant-activated brakes (drum), must be used exclusively as parking brakes and never as service brakes.
Important To ensure the efficiency of the brakes it is necessary to maintain the proper tyre pressure and check the wear of the clamping elements frequently.

5.4. Accessories check

Some accessories required when setting up the wheelchair may be supplied separately. You must assemble them and check their operation before you start using the wheelchair.

6. Accessories

OFFCARR can be configured with different accessories, described in the following paragraphs.

6.1. Pelvic band installation

OFFCARR is designed to accommodate the installation of a pelvic band when necessary.

The 45° pelvic strap is an accessory that can be selected at the time of ordering or added later.

To install a pelvic band, wrap it around the frame passing between the backrest and the side-guard as shown in the picture 1, and connect its two flaps inferiorly through the provided velcroed areas highlighted in picture 2.

Pelvic band installation

Pelvic band installation

Picture 1: View of the installed pelvic band

Picture 2: Wrap the pelvic band around the tube as in the picture

6.2. Spokes guards

Spokes guards on the rear wheels serve as an esthetic feature as well as protection against accidental insertion of the user’s fingers or hands between the spokes of the wheels. They can be attached to the spokes with velcro or clips depending on the specific model.

Example of spokes guards

7. Maintenance, inspections and controls

Weekly:

  • ✓ Check the tyre pressure. Each tyre shows on the lateral bands the maximum pressure for which they are designed. A flat tyre affects the efficiency of brakes and the agility of the wheelchair.

  • ✓ Check the efficiency of the quick-release axle (see 5.1, “Rear wheels release and re-engagement check”) and if necessary proceed with the lubrication of axle and bushes.

  • ✓ Check the tension of the backrest upholstery to maintain a comfortable position.

Quarterly:

  • ✓ Check the tightness of all the devices' screws.

  • ✓ Check the perpendicularity of the front fork support screws.

  • ✓ Check the wear of the front wheels. Solid wheels might be worn to the point of affecting the overall wheelchair front setup. In this case adjust the front fork assembly or replace the wheels (see 7.2, “Replacing front wheels”).

  • ✓ Check the efficiency of the bearings. Replace any stuck bearings if necessary (see 7.3, “Replacing rear wheel bearings”, 7.4, “Replacing front wheel bearings” and [replace_bearings_fork]).

  • ✓ Check the efficiency of the brakes and, in case, adjust them. If the knurled pin has to be replaced, consult authorised personnel.

  • ✓ Lubricate moving parts such as hinges, bearings and quick-release axles. It is suggested to use silicon oil, which is efficient and doesn’t smear.

Important Only choose original parts when purchasing accessories or spare parts.
Contact OFFCARR if you can’t find original spare parts on the market elsewhere.
Important It is recommended to refer only to authorized and qualified personnel to perform maintenance programs, adjustments, and to replace components or accessories.

7.1. Replacement of tyre and inner tube

7.1.1. Removing the tyre and inner tube

  • Deflate the wheel

  • Insert a special lever between the rim and the shoulder of the tyre so that when the lever is overturned, the side of the tyre comes out (fig. 1 and 2).

Tyre/tube disassembly 1

Tyre/tube disassembly 2

  • Insert another lever 100mm away from the previous point and repeat the operation (fig.3).

  • Slide the two levers along the circle to free the entire shoulder of the tyre.

Tyre/tube disassembly 3

  • Extract the inner tube, starting from the side opposite the inflation valve (fig. 4).

  • Once the inner tube has been extracted, it is easy to remove the tyre to replace one or both of them.

Tyre/tube disassembly 4

7.1.2. Assembling the inner tube and tyre

  • Insert the (partially deflated) bladder into the tyre (fig. 5)

  • Insert the chamber inflation valve into the hole on the rim.

  • Insert one side of the tire entirely on the rim, paying attention to the direction of the tire tread pattern depending on whether the push wheel is right or left.

  • Insert the opposite shoulder on the rim as well, starting from the point where the valve is positioned and continuing in both directions.

  • Insert the last part of the shoulder with the help of the special levers by following the instructions represented in Fig. 3, Fig. 2 and Fig. 1 backwards.

  • Inflate the wheel to the pressure indicated on the side of the tyre.

Tyre/tube assembly

7.2. Replacing front wheels

If necessary, the front wheels can be replaced:

  • Unscrew one of the screws D and remove the pin E, paying attention to the positioning of the spacers R

  • Replace the wheel W

  • Position the wheel hole in line with the selected hole on the fork F

  • Insert the axle E respecting the original position of the spacers R

  • Tighten the screw D

Sostituzione ruotina anteriore
Important It is important to select the same position for both wheels. Asymmetrical positions produce instability.

7.3. Replacing rear wheel bearings

Disassembly

  • The bearings in the push wheels (B1 and B2) are press-fit. To extract them it is necessary to push them from the inside with the aid of an extractor or a pin punch and a hammer.
Bearings replacement

Assembly

  • Position the new bearing B1 on the inside of the hub so that it is coaxial with the hub and apply pressure to seat it.

  • Before positioning the second bearing B2 insert the axle A to use it as a guide for the second bearing and to ensure coaxiality of the system.

7.4. Replacing front wheel bearings

Disassembly

  • The bearings in the front wheels (C1 and C2) are press-fit. To extract them it is first necessary to remove the wheel W from the fork F, by unscrewing the screw D and removing the pin E, taking care of not losing the spacers R.

  • Push the bearings from the inside out with the aid of an extractor or a pin punch and a hammer, making sure not to lose the spacer S placed inside the wheel.
Sostituzione dei cuscinetti della ruota anteriore

Assembly

  • Repeat the steps in the inverse order, making sure to put all spacers back where they were initially and ensuring bush coaxiality.

Disassembly

  • Remove the press-fit cap C, using a small flathead screwdriver as a lever

  • Remove the N nut

  • The bearings in the front fork pin (B1 and B2) are press-fit. To extract them it is necessary to push them from the inside with the aid of a pin punch and a hammer, paying attention not to lose spacer S placed between the two bearings
Bearings replacement

Assembly

  • Place a new bearing on the lower side of the fork, making sure that it is evenly inserted (it must be coaxial with the hub otherwise it will not enter).

  • Before positioning the bearing on the opposite side, it is necessary to insert the spacer S on the fork pin P using the pin as a guide for the bearing. In this way the coaxiality of the hub and the two bearings is ensured.

  • Insert and fasten nut N

  • Put the cap C back in place paying attention to the O-rings. Use a rubber mallet to seat it correctly and tightly.

7.5. Quick extraction devices

7.5.1. Check

The quick extraction axles are shipped already checked and adjusted. However, it is recommended to periodically verify the effectiveness of their operation.

  • Make sure that the X button is fully released once the wheel is correctly mounted.

  • Check the effectiveness of the latch by trying to pull the wheel outward without pressing the button and make sure it does not slip off.

Wheel removal diagram

7.5.2. Adjustment

If necessary, it is possible to adjust the axle to eliminate any play between the wheel and the frame or to complete the release of the button once the wheel is inserted.

Wheel pin scheme

  • If the quick-release button is not completely relaxed when the wheel is inserted in the frame, it is necessary to extend the useful length of the L axle by partially unscrewing the Y nut.

  • If once the wheel has been inserted into the frame, there is play between the frame and the wheel itself, it is necessary to reduce the useful length of the L axis by partially tightening the Y nut.

Note The Y nut thread has a pitch of 1 mm, therefore the unscrewing or screwing of one turn involves the elongation or reduction of 1 mm. In case of adjustment, it is advisable to proceed with successive adjustments of ¼ of a turn at a time.

8. Cleaning instruction

Important Cleaning and disinfection procedure have to be performed exclusively by qualified personnel.
Important Follow the instructions on this manual to perform the cleaning and disinfection procedure.
Important Use appropriate eye/facial protection and protective gloves, during cleaning and disinfection procedure.

In case of contamination with blood or other body fluids, the device has to be cleaned first and then disinfected as follows:

Note Most of the time is convenient and more effective to remove the upholstery from the frame before to proceed with the cleaning and disinfection of either frame or upholstery.

FRAME

  • Wash the device with lukewarm water and neutral detergent using a damp cloth to remove gross soiling

  • Remove eventual detergent residuals only with lukewarm water

  • Dry the device prior to further processing

  • Visually inspect the cleanliness of the complete device

  • Disinfect the device using 70-90% alcohol

  • Be sure it is completely dry before proceeding with use

UPHOLSTERY

In case of the user remaining the same before and after the cleaning treatment:

  • Wash, rinse, dry and disinfect the upholstery using the same process used for the frame

  • Be sure the upholstery parts are completely dry before reassembling them

In case of different user after the cleaning treatment:

  • The best course of action is to change the upholsteries with a new set

Note During the cleaning process the device should be also carefully inspected for damage, oxidation and faults in function. If any damage or faults are found, the involved components should be removed for service, repair or replacement.
Important All waste materials related to this process must be disposed in compliance with specific local applicable law.

9. Technical service

For any service request, please contact OFFCARR supplying the following indications:

  1. Model

  2. Serial number

  3. Fault description

  4. Any reference or order number, if available, recorded on the order form.

  5. Dealer

Every component of the device is available as spare part.

10. Warranty terms

It is strongly advised to register the product on the website www.offcarr.com after delivery.

  1. The device’s frame is guaranteed for 2 (two) years from the delivery date.

  2. The label showing the serial number, the manufacturer address and the CE symbol cannot be removed for any reason to preserve the warranty validity.

  3. Parts subject to normal wear and tear are not covered by the warranty, unless specific wear is caused by evident manufacturing fault.

  4. During the warranty period OFFCARR may proceed at its own discretion to change or to repair the faulty parts.

  5. The warranty does not cover damage due to negligence, carelessness, misuse or by incorrect maintenance performed by non authorized personnel.

  6. If any damage occurred during transport, the forwarder company is the only responsible. It is important to inform immediately both the forwarder company and, for information, OFFCARR.

  7. The warranty does not cover injury or any other damage to people or goods connected to the device’s malfunctioning.

11. Packaging, shipment and delivery

All OFFCARR products are shipped in closed cardboard cases to protect them from bumps and dust.
The package includes the device configured according with the order form, this Instruction manual and a tool kit.

The device must be transported in trucks that protect it from atmospheric agents, as shown on the packaging box.

Upon receipt, check the box integrity: open the package, remove the device and check it for damages. In case of problems, note your remark on the waybill and immediately notify both the forwarder and, for information, OFFCARR.

Once these checks, mandatory to ensure the validity of the warranty, have been carried out, place again the device in its packing until it is used and store in a cool and dry place (between - 15 and + 50 °C and with a relative humidity lower than 80 %).

Do not place any objects over the packaging box.

The packaging materials follow the European directive 94/62/EC[13].

12. Correct disposal and recycling

OFFCARR products are made of aluminium alloy (Al 7020, Al 6082, Al 2017, Al 6061, Al 5754), titanium, steel, stainless steel, carbon fibre, polyurethane, epoxy resins, other composite materials.

Recycle or disposal of all materials must be in compliance with the local applicable laws.

Contact your dealer in case of doubt or for help when disposing the device.

13. Adjustments

The wheelchair is shipped to the customer in the setup chosen on the order form.

Considering potential setup restrictions it is still possible to perform other adjustment to hone in the wheelchair to the specific user.

Important Please refer to authorized and qualified personnel to perform the adjustments described in this manual.

13.1. Footrest adjustments

13.1.1. ACE

The footplate is attached to the frame by two screws:

Height adjustment

  • Loosen and remove the screws E that secure the telescopic support to the frame.

  • Slide the footrest up to the desired height, aligning the holes of the outer tube and the inner tube.

  • Reinsert screws E and tighten them appropriately.

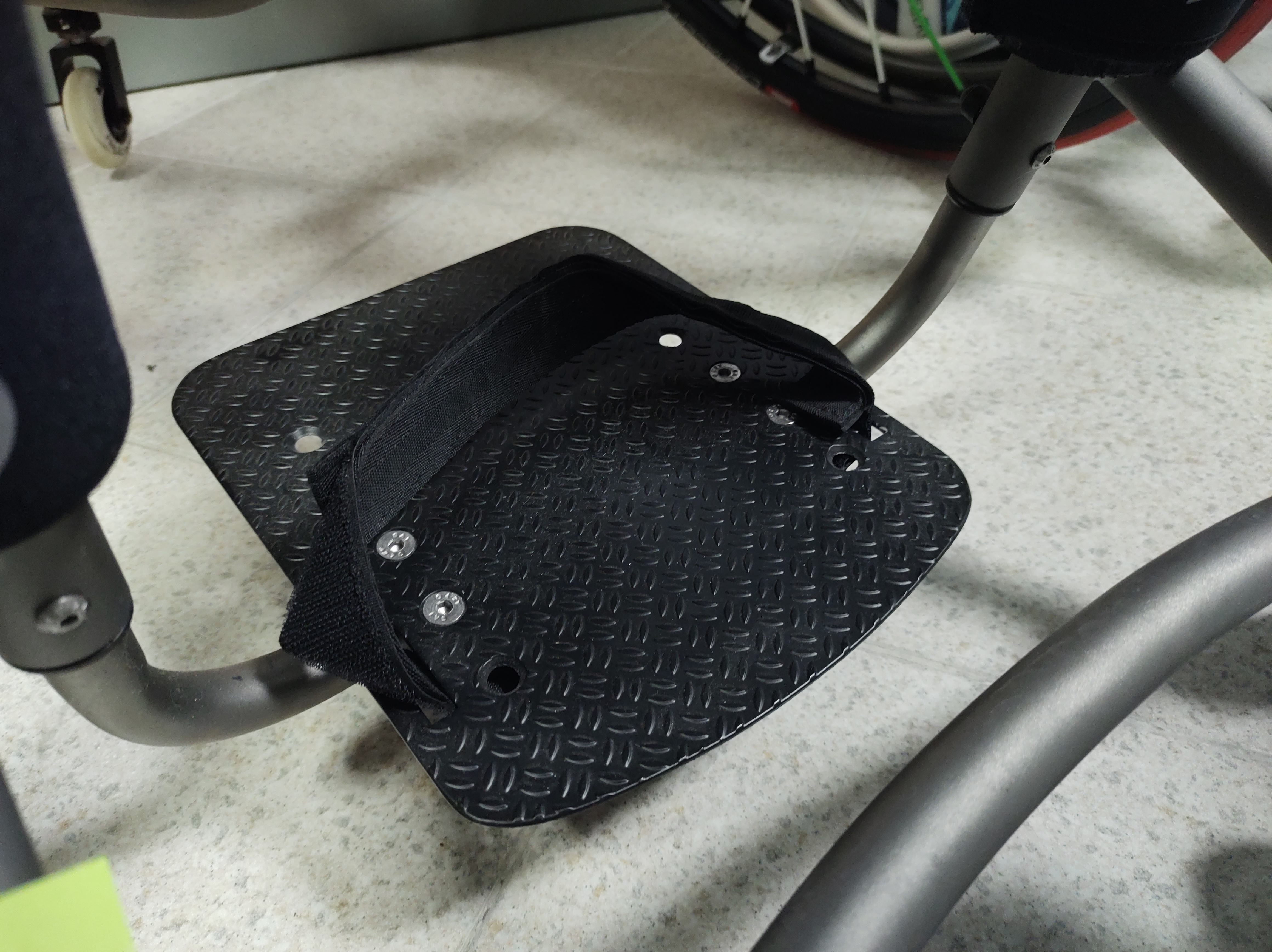

Footrest height adjustment
Depth adjustment

  • Remove the 4 R screws.

  • Position the footplate at the desired depth.

  • Fasten the screws R.

Footrest height adjustment
Tilt adjustment

  • Loosen the four R screws.

  • Tilt the footplate to the desired angle.

  • Fasten the screws R.

Footrest height adjustment

13.1.2. ALLEY HOOP, ASSIST, GOTRY, WIND

Height and tilt adjustment

The footplate is attached to the frame by two clamps that allow to independently choose the front and rear footplate height:

  • Remove the 4 screws F.

  • Position the footplate at the desired height.

  • Fasten appropriately the screws F.

Footrest Distance Adjustment
Depth adjustment

The footplate is attached to the frame by four clamps and can be adjusted in two different ways:

CHANGING MOUNTING HOLES

  • Loosen the 2 screws completely.

  • Position the footplate at the desired height.

  • Fasten the screws.

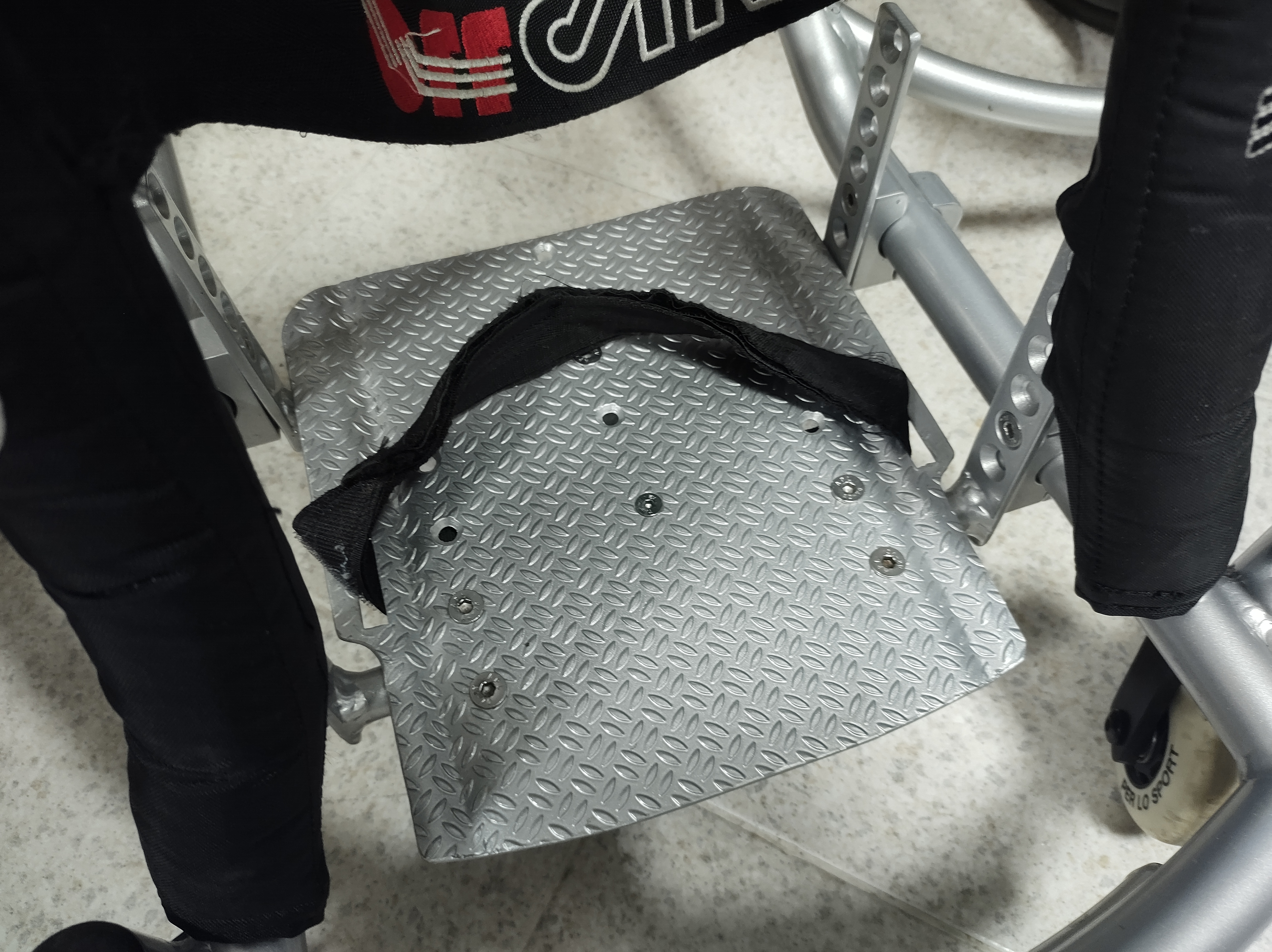

Footrest Distance Adjustment
MOVING THE MOUNTING CLAMPS

  • Loosen the clamps screws.

  • Position the footplate at the desired height.

  • Fasten the screws.

Footrest Distance Adjustment

13.1.3. TOPSPIN 1, TOPSPIN 3

The footplate is attached to the frame by two clamps and can be adjusted in height, depth and tilt:

Height adjustment

  • Remove the four screws P.

  • Position the footplate at the desired height.

  • Fasten appropriately the screws P.

Footrest Distance Adjustment
Depth adjustment

The footplate depth can be adjusted in two different ways:

CHANGING MOUNTING HOLES

  • Remove the 4 R screws.

  • Position the footplate at the desired depth.

  • Fasten the screws R.

MOVING THE MOUNTING CLAMPS

  • Loosen the BB clamps screws Q.

  • Position the footplate at the desired depth.

  • Fasten the screws Q.

Footrest Distance Adjustment
Tilt adjustment

  • Loosen the four R screws.

  • Tilt the footplate to the desired angle.

  • Fasten the screws R.

Footrest Distance Adjustment

13.1.4. QUASAR DANCING, ZODIAC FENCING

The footplate is attached to the frame by two screws:

Height adjustment

  • Loosen and remove the screws E that secure the telescopic support to the frame.

  • Slide the footrest up to the desired height, aligning the holes of the outer tube and the inner tube.

  • Reinsert screws E and tighten them appropriately.

Footrest height adjustment

13.2. Backrest tilt adjustment

  • Lift the front upholstery like described in par 3.4

  • Unscrew and remove the BH bolts

  • Set the desired height

  • Put the BH bolts back and tighten them

  • Fold the backrest upholstery cover down again

Regolazione altezza schienale con maniglie fisse

13.3. Backrest tension adjustment

The backrest tension can be easily adjusted by acting on the velcro straps:

13.3.1. model

  • Raise the flap B of the backrest cover.

  • Adjust the tension of the straps A by increasing or decreasing the overlap of the two flaps

  • Reseat in place the backrest fabric B

Backrest tension adjustment















OFFCARR s.r.l. reserves the right to make improvements and/or changes on its products, at any time without prior notice, with respect of the device features, suitability, certifications, warranty contract and availability of spare parts according to the terms of law.
